Drain

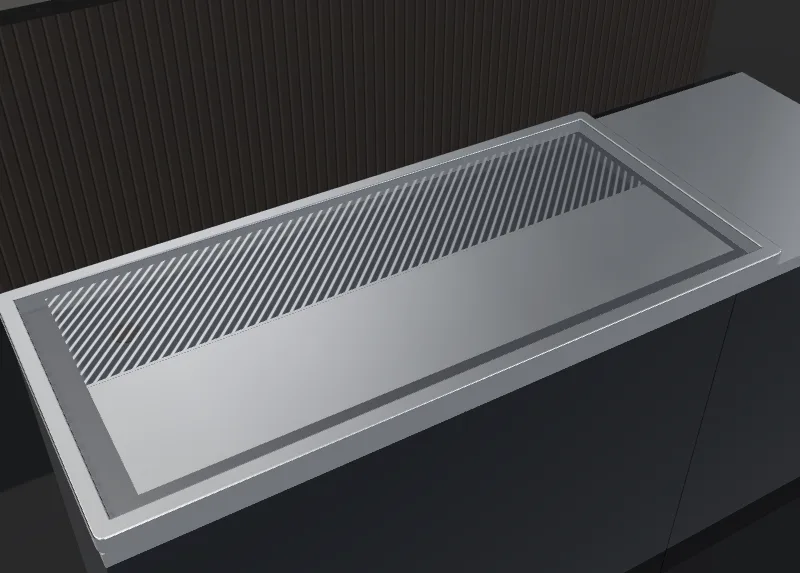

The coffee tray runs 51.2 inches, long enough for a two-group espresso machine with room for the grinder side. The machine sits on the solid shelf at the back, cups go on the roster up front, and purges, rinses and overflow run straight to the drain.
Milk, water and coffee end up in the tray instead of on the counter and the floor. The counter stays dry, the barista stays fast, and close takes minutes.

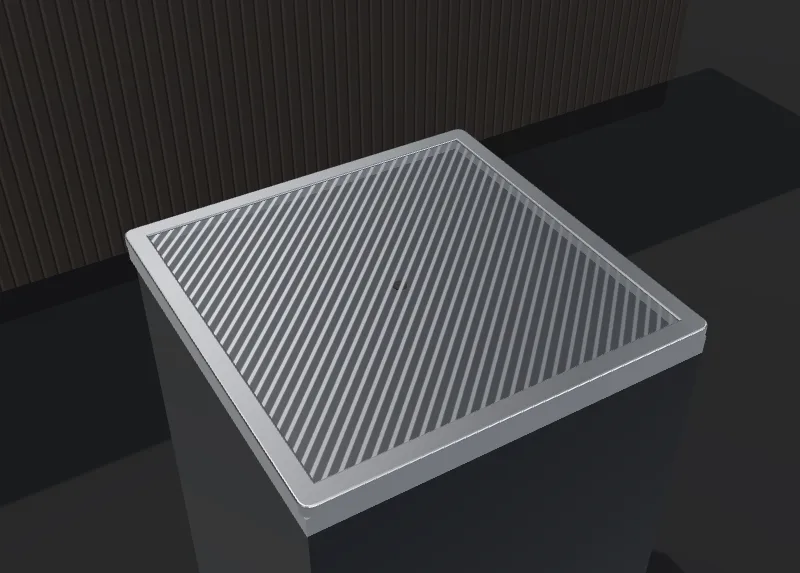

One square tray for the bar top, one long tray for coffee or beer. Same 304 stainless, same rounded flange, same laser-cut roster.
| Drip Tray | Coffee Drip Tray | Beer Drip Tray | |
|---|---|---|---|
| Outside size | 23.6" × 23.6" (600 × 600 mm) | 51.2" × 23.6" (1300 × 600 mm) | 51.2" × 23.6" (1300 × 600 mm) |
| Depth | 0.8" (20 mm) | 1.3" (33 mm) | 1.3" (33 mm) |
| Top | Full laser-cut roster | Solid shelf for the machine, roster for cups | Solid shelf for the tower, roster for glasses |
| Drain | 1/2" (20 mm), or none | 2" (51 mm) molded, or none | 2" (51 mm) molded, or none |
| Best for | Bar top glass landing, cocktail pickup | Espresso machines, coffee stations | Beer taps and towers |
| Price | $575 | $1,500 | $1,500 |
| View Drip Tray | Order This Tray | View Beer Drip Tray |

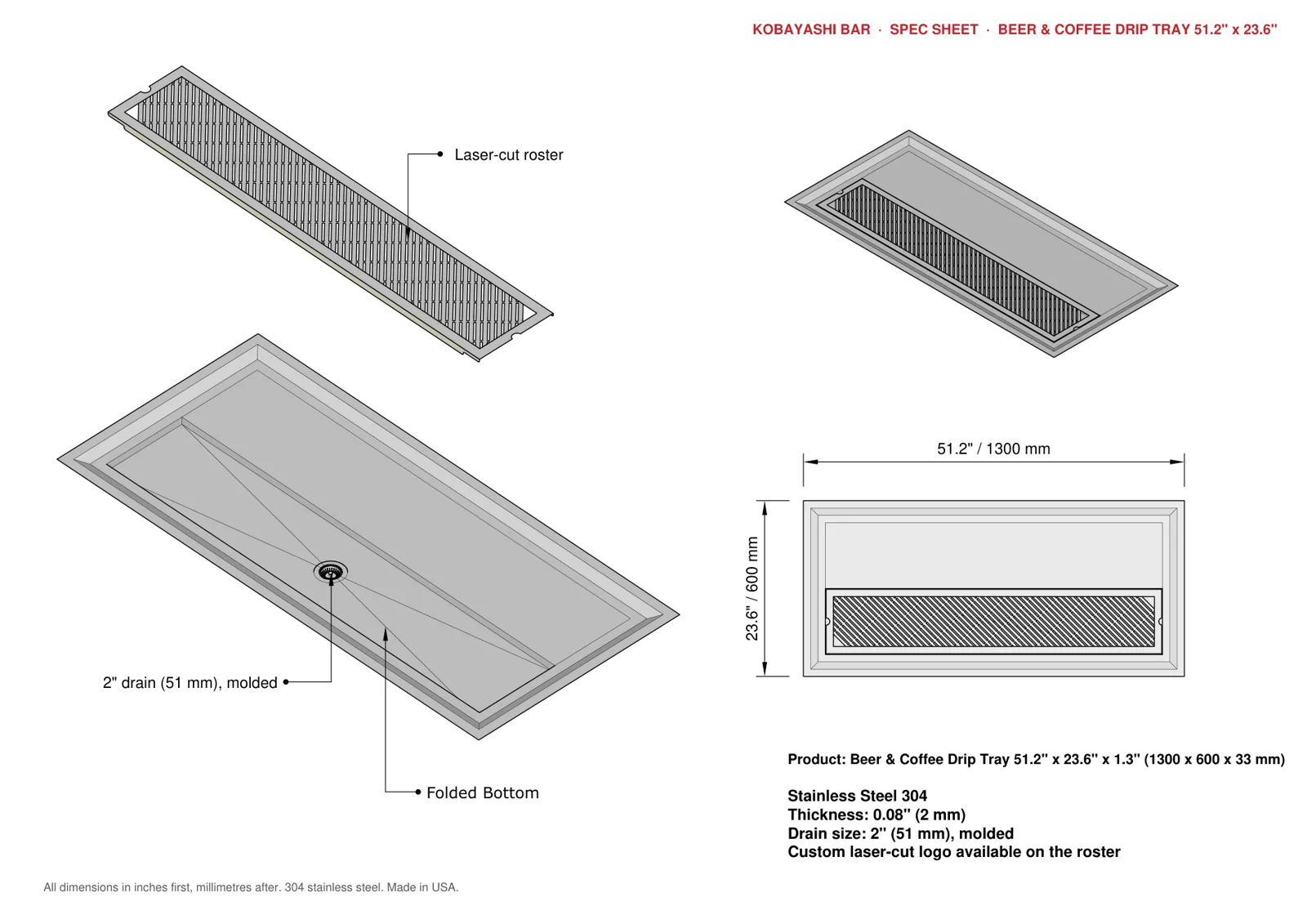

The tray drops into a counter cutout and hangs on its 0.98" flange, so the top sits flush with the work top. Your contractor makes one cut and connects one drain.
The body under the flange is 45.3" (1150 mm) long. Cut the opening a hair larger than the body, never larger than the flange.
The coffee tray has a 2" (51 mm) molded drain. Order it without a drain and it ships with a closed floor.
Send us the counter size and your machine, and we come back with a tray, a layout and a price.
