| Model | KC-65-S1 |
| Dimensions (L x W x H) | 65" x 23.62" x 38.78" |
| Weight | 180 kg / 400 lb |
| Footprint (L x W) | 0.99 m2 / 10.7 ft2 |
| Ice Chest Capacity | 168 L / 5680 fl oz / 44.38 gal |
| Usable Ice Estimate | 328.3 lbs / 148.9 kg |
| Real-World Servings | ~300 cocktails |
| Venue Coverage | ~120-170 guests |
| Crew Capacity | 1-3 bartenders |
| Installation Type | Standalone |
| Insulation Value | R-3 (3/4" elastomeric) |
| Material | 304 Stainless Steel |
| Lead Time | 8-10 weeks |
| Guarantee | Lifetime Structural Guarantee |
| Origin | Made in USA |

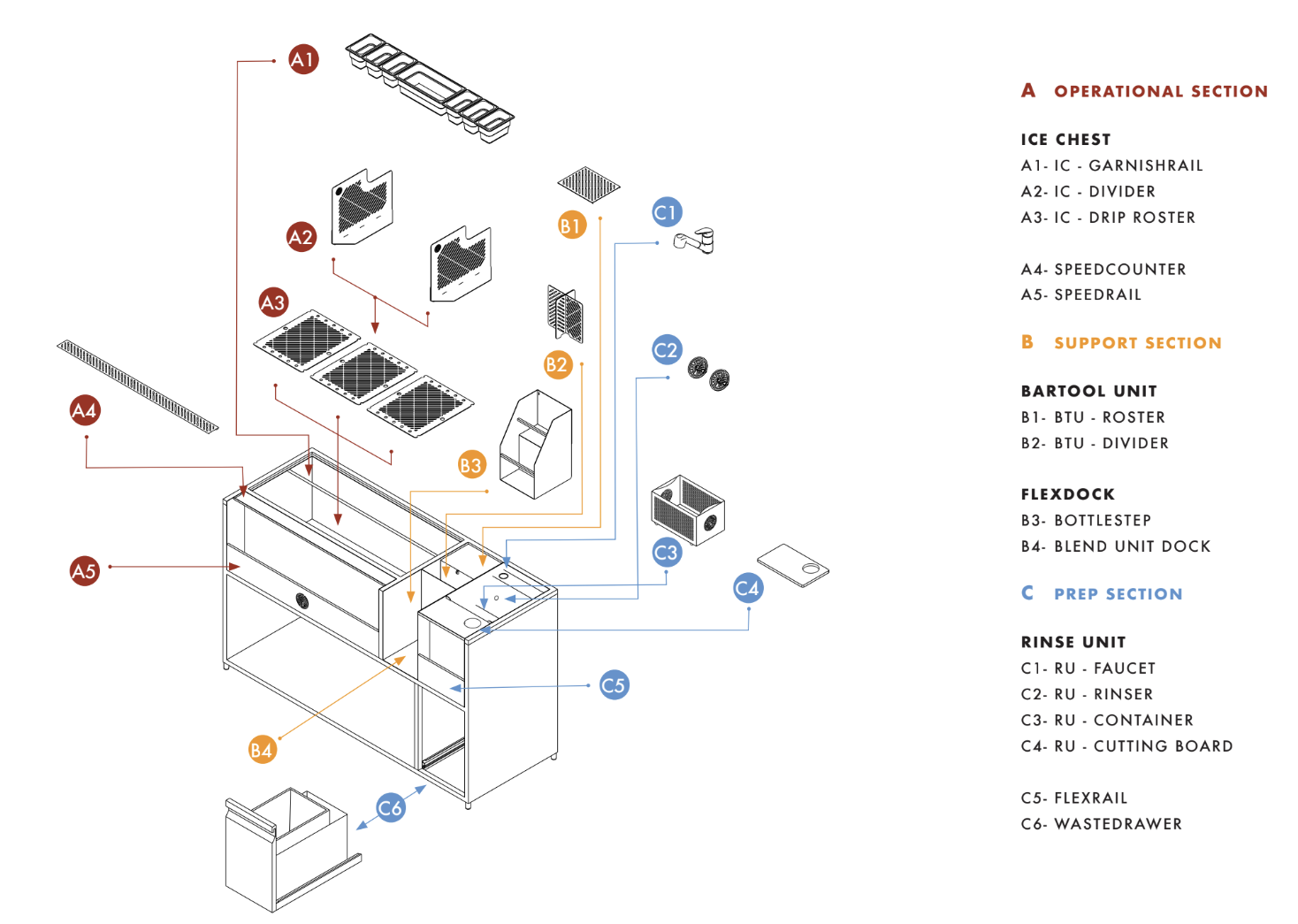

| Ice Chest | ✓ |
| Garnish Rail | 6 x GN 1/9 + 1 x GN 1/3 |
| Dividers | 2 |
| Drip Roster | ✓ |
| Speedcounter | ✓ |
| Speedrail Capacity | 11-12 bottles (+2 bottlestep) |
| Bartool Unit Roster | ✓ |
| Flexdock Bottlestep | ✓ |
| Blend Dock | ✓ |
| Rinse Unit / Prep Faucets | 1 |
| Glass Rinsers | 2 |
| Container | ✓ |
| Cutting Board | 1 |
| Flexrail | ✓ |
| Waste Drawer | ✓ |
| Capacity | 168L / 44 gal |
| Usable Ice Estimate | 328.3 lbs / 148.9 kg |
| Insulation | 3/4" Elastomeric Closed-Cell Foam |
| R-Value | R-3 |
| Drain | 2" Pre-Installed |
| Material | 304 Stainless Steel Interior |
| Dividers | 1x Removable (additional available) |
| Covers | Optional (sold separately, $150 each) |
Every angle, compartment, and rail was purpose-built by someone who has worked behind a bar and studied how bartenders actually move during a rush.
Most bar equipment starts falling apart within a few years. A Kobayashi station is the last one you will ever need for this position.
16-gauge 304 stainless steel resists citrus, salt, and sanitizers shift after shift. Insulated ice chests hold temperature longer, reducing refills. Reinforced joints handle nightly high-volume abuse without loosening.
Complete peace of mind. Lifetime structural guarantee covers everything.
| Feature | Kobayashi 65" | Typical Setup |
|---|---|---|
| Material | ✓ 304 SS, 16-gauge | Mixed grades |
| Ice Chest Insulation | ✓ R-3 Closed-Cell Foam | None or minimal |
| Glass Rinser | ✓ 2x Pre-installed | Add-on cost |
| Design Consult | ✓ Included ($200 value) | ✕ Not included |
| Lifetime Guarantee | ✓ Full structural | ✕ 1-2 year limited |
| Ships Assembled | ✓ Fully assembled | Kit, self-assembly |
| Made in USA | ✓ Yes | Typically imported |
Every Kobayashi station is built to the same 16-gauge 304 stainless steel standard with the same lifetime guarantee. Pick the footprint that fits your service volume.
The 65" Standalone ships fully assembled on a freight pallet via LTL carrier. Delivery is curbside; you will need a lift gate or loading dock for offloading. Freight cost is quoted separately based on your location.
The 65" model is best suited for venues serving 120-170 guests with 1-3 bartenders working simultaneously. If your venue is smaller, the 52" models may be a better fit. For larger venues with 2-4 bartenders, consider the 88" Standalone. Our included 1-hour consulting session will help you make the right call.
If you receive the station and it is not as described or does not perform as specified, we will work with you to resolve the issue or arrange a return at no cost to you within 30 days of delivery.
The glass rinsers require a cold water connection (standard 3/8" supply line) and the drain requires a 2" floor drain connection. The station arrives with pre-installed drain fittings. Your bar contractor can connect both in under two hours.
Every station includes a 1-hour video call with our bar design team. We will review your floor plan, discuss traffic flow, help you spec the right model and orientation, and answer any installation questions before your order ships.
Yes. Custom configurations including panel finishes, additional speed rails, custom cutouts, and non-standard dimensions are available. Request a quote and our team will walk you through available options and lead times.
Wipe down with warm soapy water after each shift. Use a food-safe stainless steel cleaner weekly to maintain the finish. The garnish inserts and ice chest drain clean easily with standard bar tools. No special maintenance schedule required.
The lifetime structural guarantee covers the stainless steel frame, welds, and primary structure against defects in materials and workmanship for the life of the product under normal commercial use. Wear items like rubber gaskets and plastic feet are not included but are inexpensive to replace.
The 65" Standalone Bar Station has a lead time of 8-10 weeks from order confirmation. Each station is built to order in the USA. Rush orders may be available depending on current production capacity; contact us for details.
Every station includes a 1-hour bar design consulting session. We will help you spec the right model for your space and service style.
