Dimensions
• 52″ L x 23.62″ W x 38.78″ H
• 1325 x 600 x 985 mm

Weight
• 114 KG / 151 LBS

Material
• Stainless Steel 304

Ice Chest Capacity
• 135 L / 4,565 fl oz

Speedrail Capacity
• 11–12 bottles (expandable by +2 with Bottlestep)

Serving Capacity (before refilling ice)
• Approx. 120 drinks
(Based on standard 25x25x23 mm ice cubes)

Drainage
• 2x pre-installed 2” drains
• Plumbing connections not included

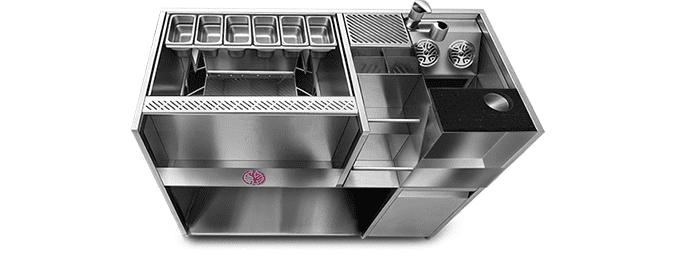

Compact and complete
The 52″ Cocktail Station delivers full-service functionality in a space-saving frame—ideal for bars, clubs, and venues with tighter back lines.

Built with bartenders in mind
Everything from rinse units to waste drawers is laid out for minimal motion and fast service. Nothing extra, nothing missing.

All-in-one, right out of the crate
No upgrades or bolt-ons needed. This station arrives with all the features your team needs to prep, serve, and stay clean throughout a shift.

Smaller size. Same speed.
Despite its compact footprint, the 52″ model holds the same ice volume and bottle capacity as larger models, helping you move just as fast.

Ice Chest Module

• Insulated stainless ice chest with drainage

• Garnish rail with 6x GN 1/9 containers

• 1x ice chest divider

• 1x ice chest rosters

• Speedcounter with stainless steel drip rail insert

• 1x speedrail (holds 11–12 bottles)

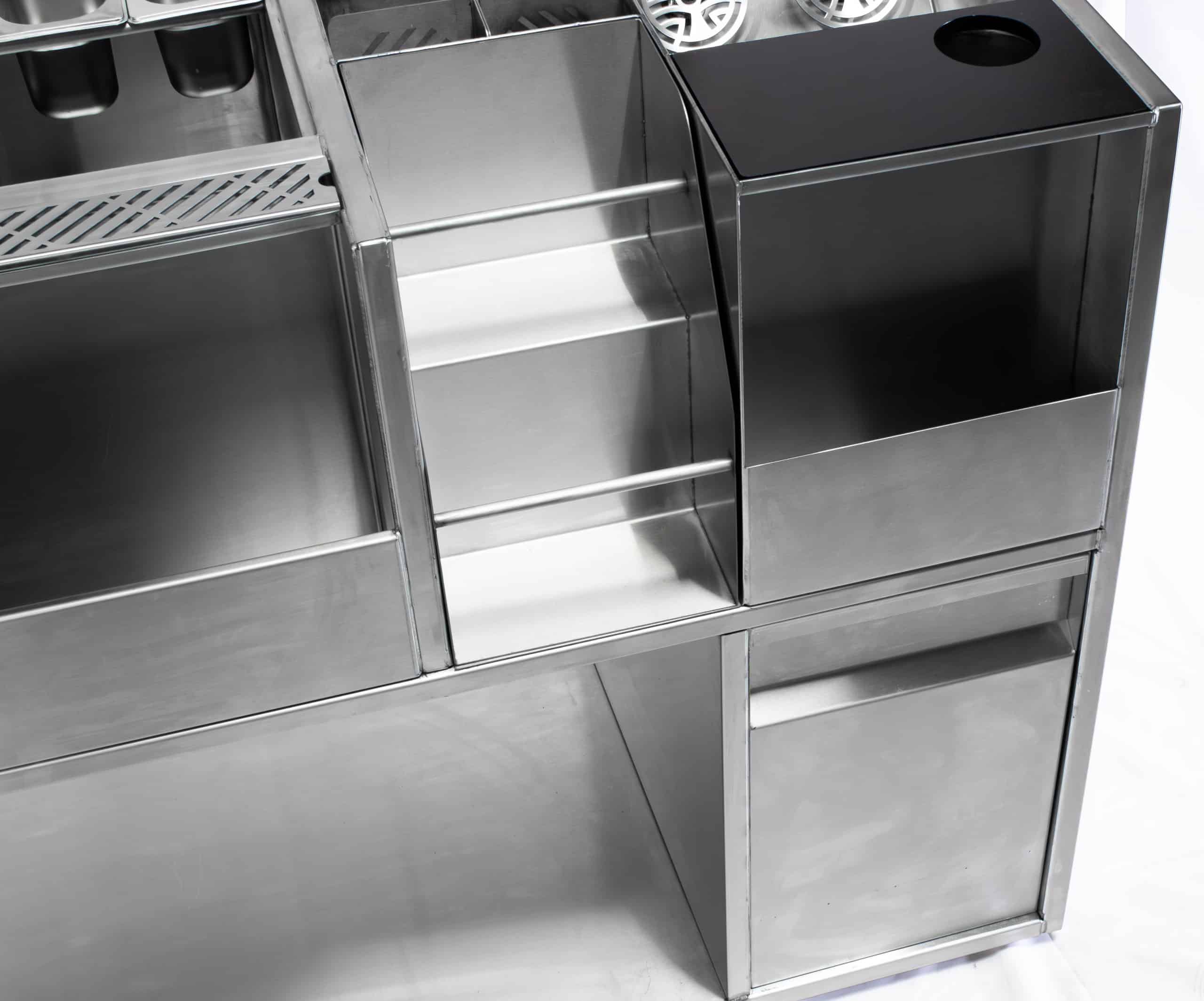

Bartool Unit

• Built-in drainage

• Bartool roster

• Divider insert

• Bottlestep / blender-ready cutout

Rinse Unit

• Drain & rinse container

• 1x retractable faucet

• 2x glass rinsers

• Cutting board with waste chute

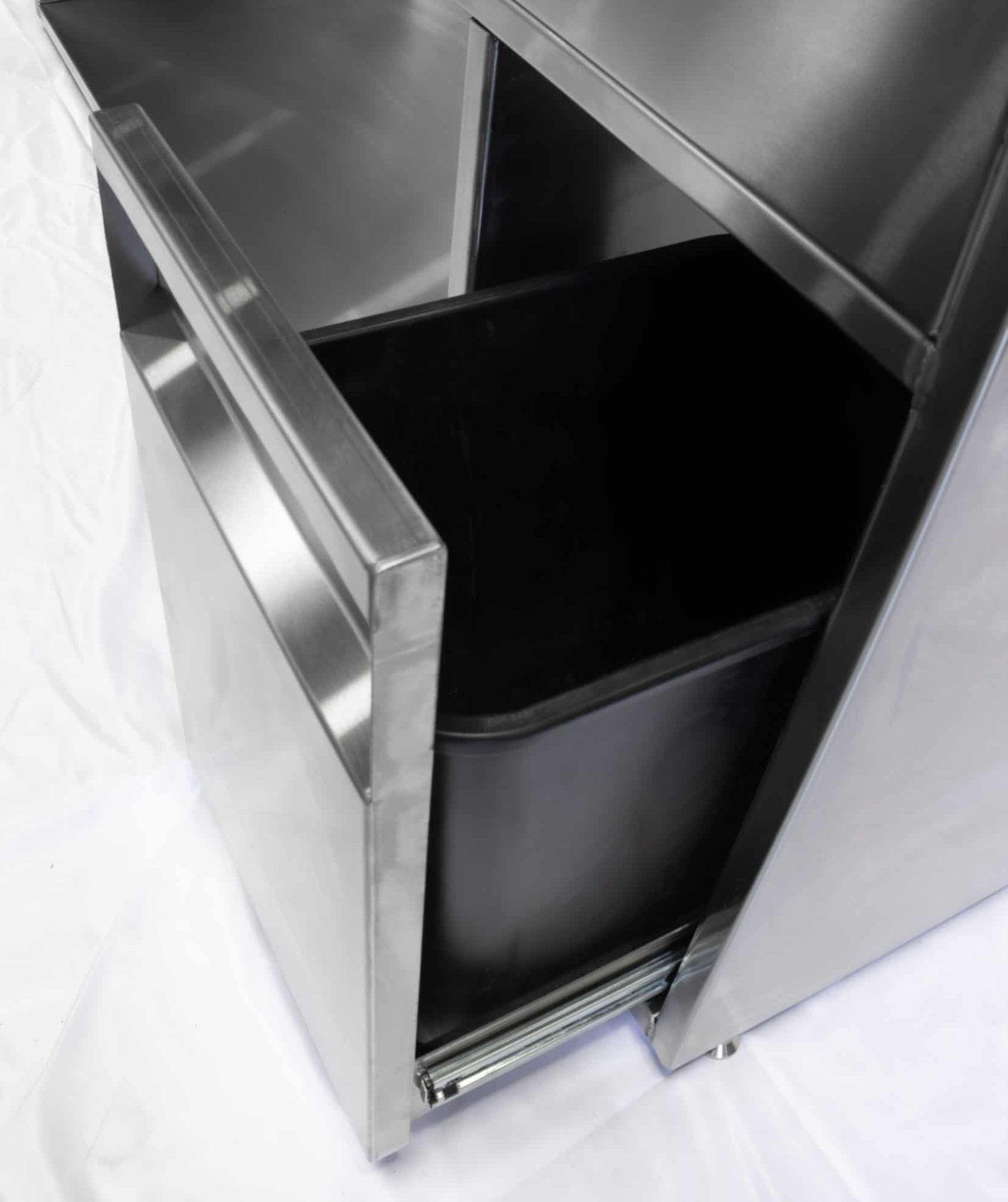

• Integrated waste drawer with bin
